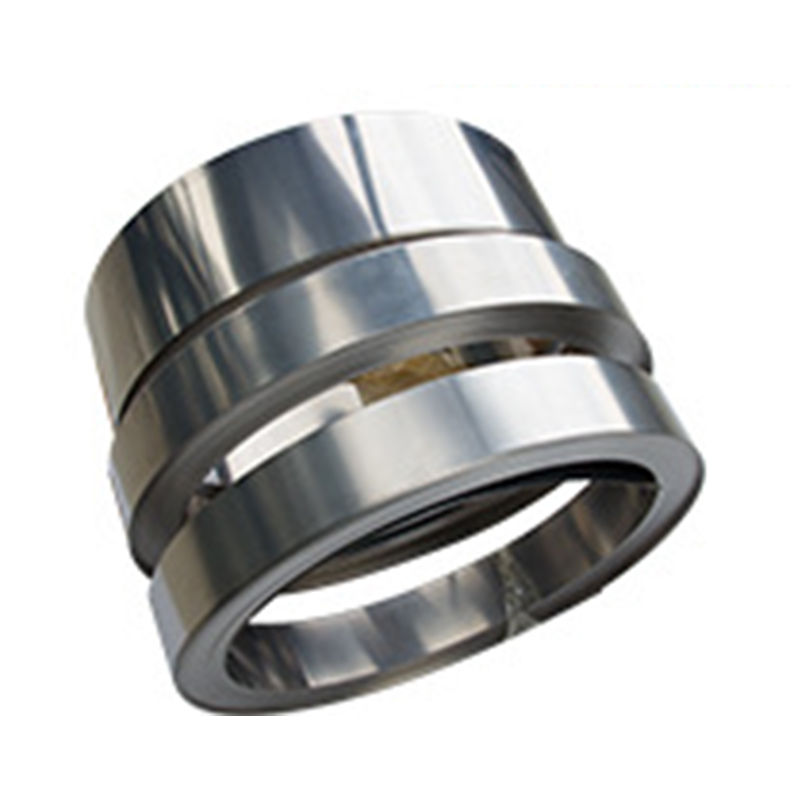

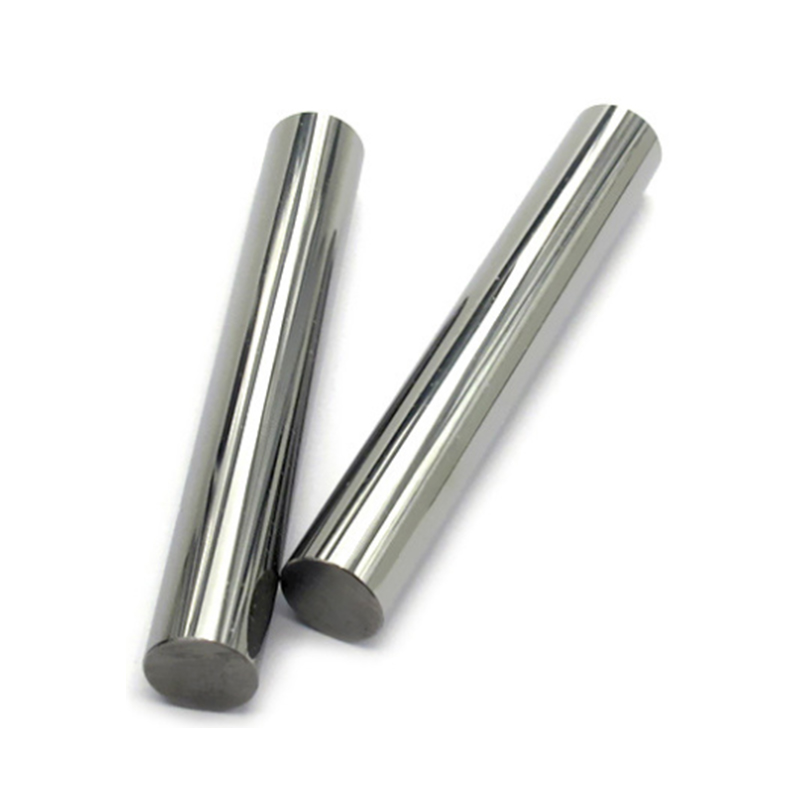

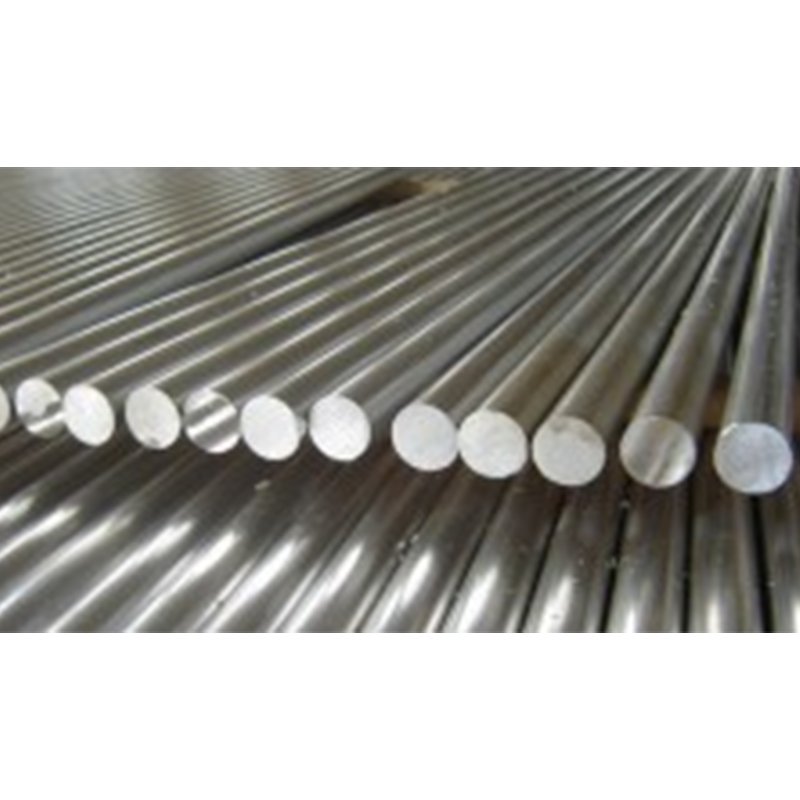

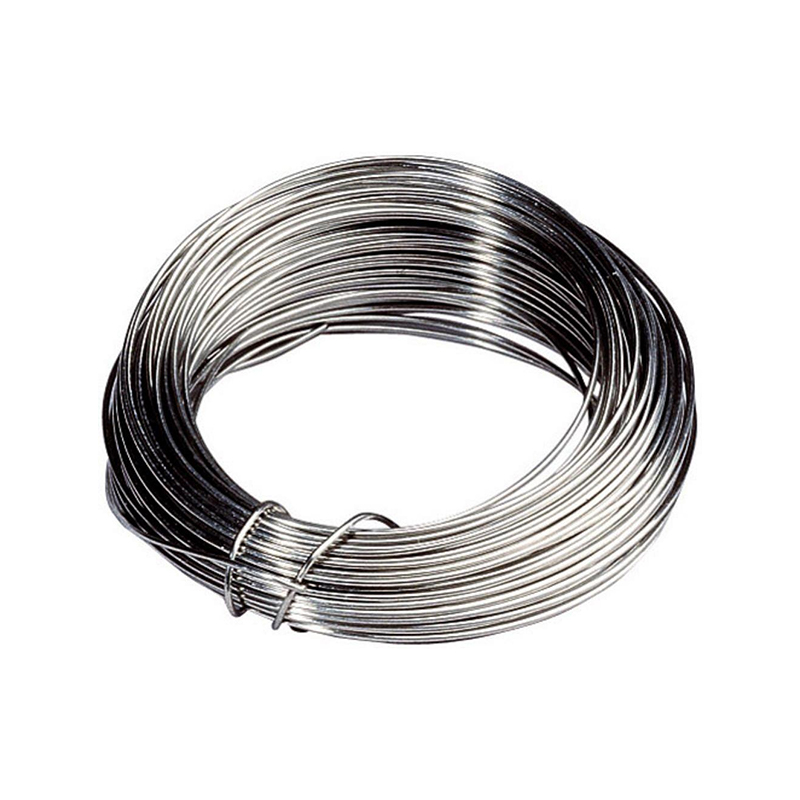

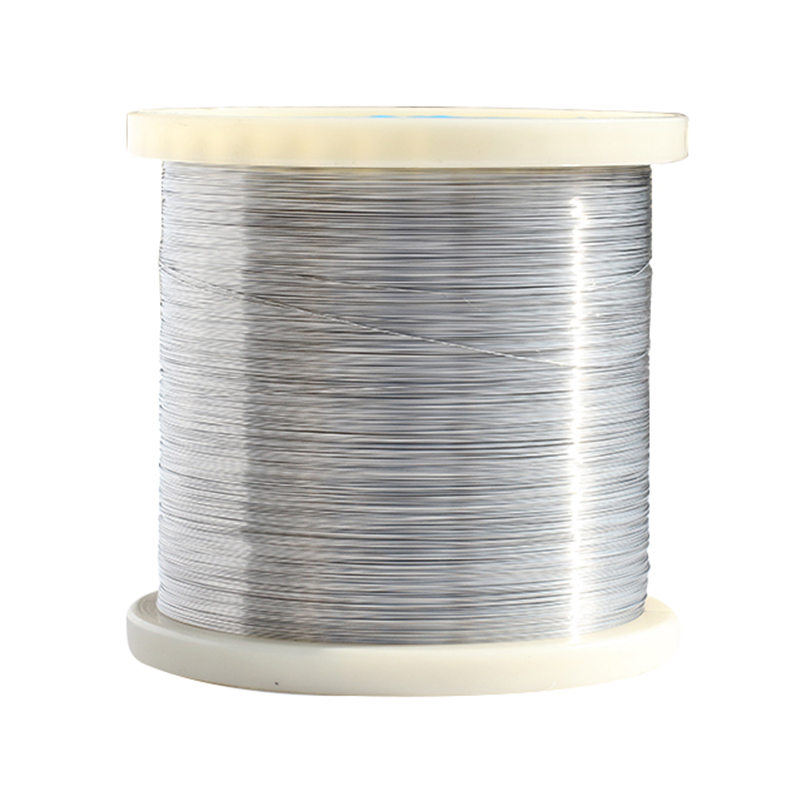

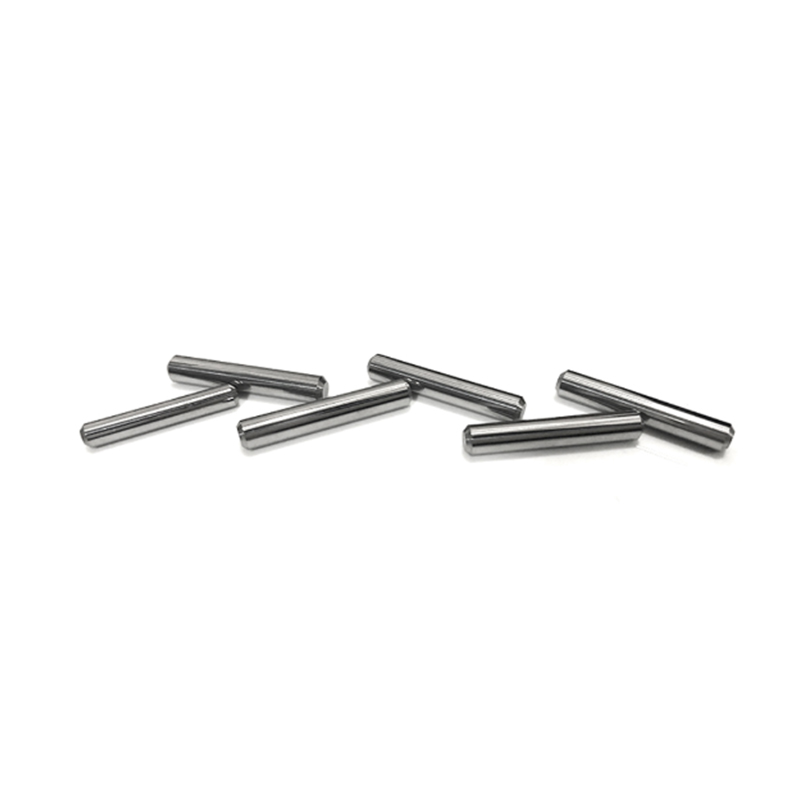

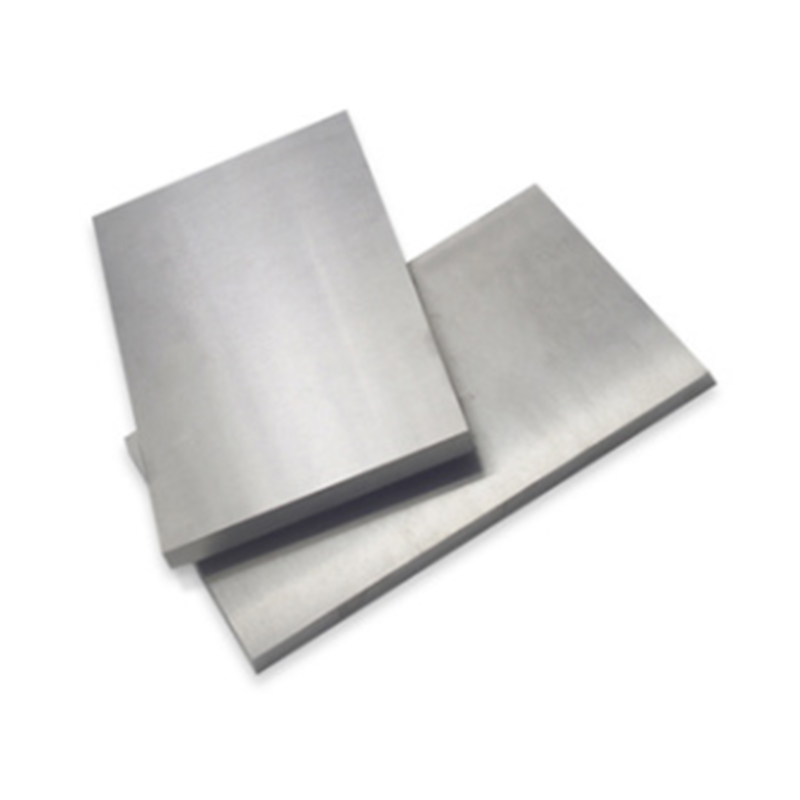

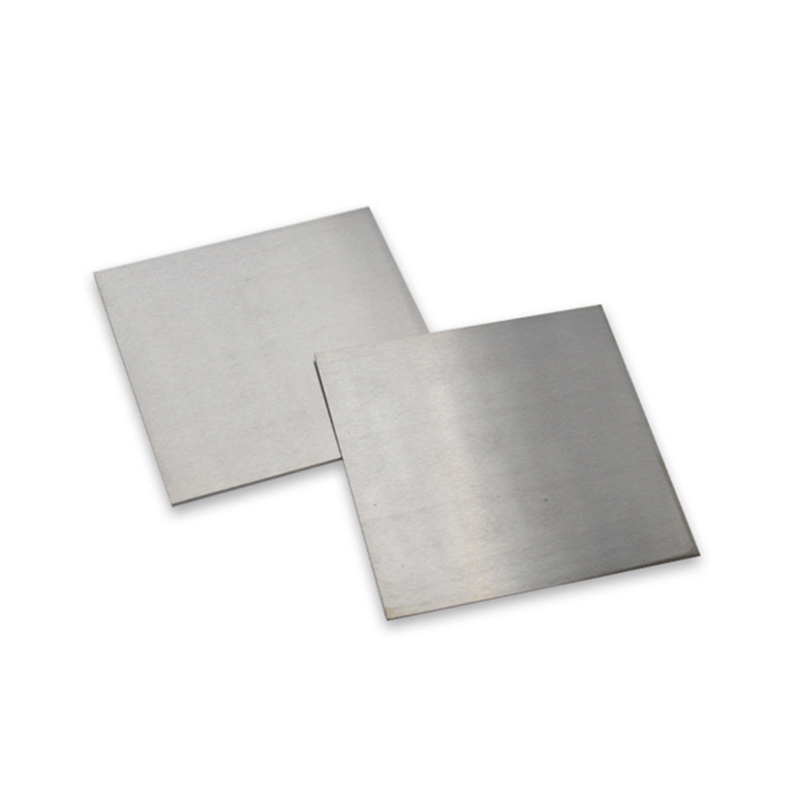

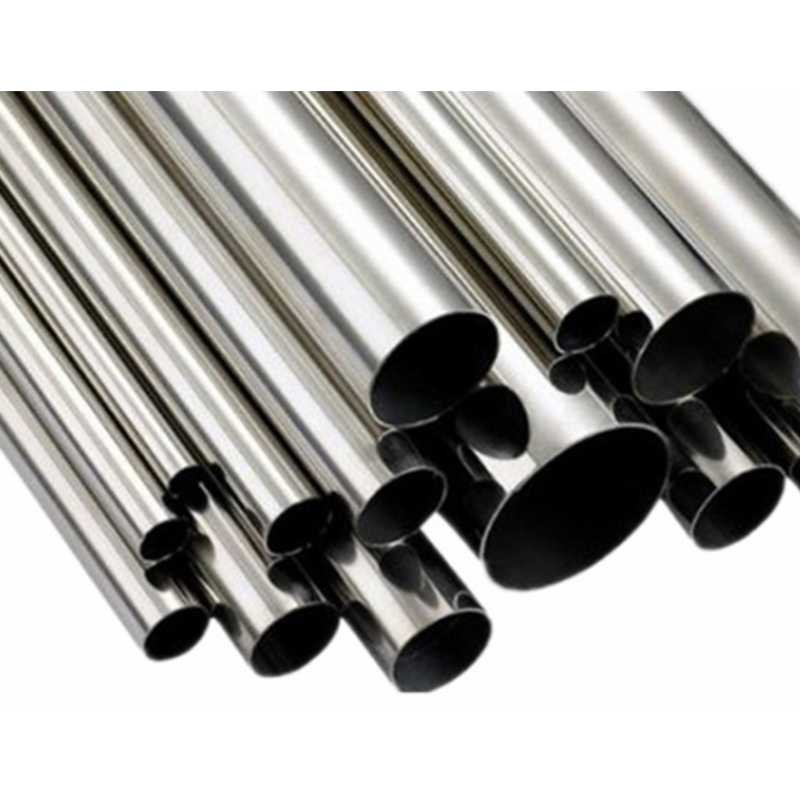

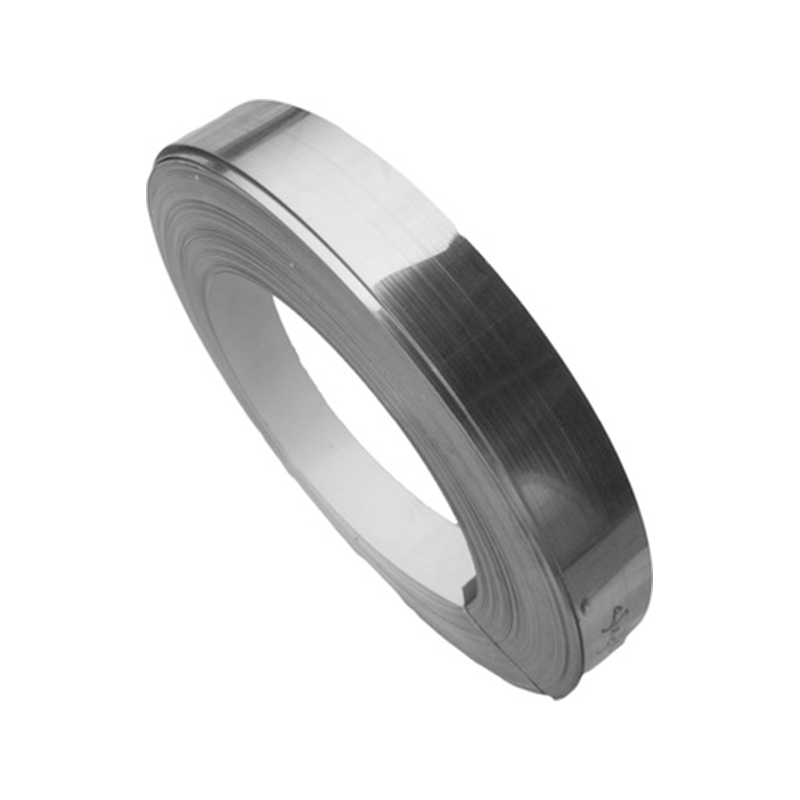

Incoloy 800 series of alloys is the result ofyears of monitoring and maintaining the ultimate chemical properties for high-temperature strength and resistance to oxidation, carburization, and other types of high-temperature corrosion. Each one a refinement of the one before, these alloys have set the industry standard in high-temperature applications requiring optimum creep and rupture properties. Excellent corrosion resistance in extremely high water media up to 500 °C, and it has good resistance to stress corrosion.
Incoloy 800 Grade and Main Chemical Composition Table
| Grade | % | Ni | Cr | Fe | C | Mn | Si | Cu | S | Al | Ti |
| Incoloy 800 | Min | 30 | 19 | 0.15 | 0.15 | ||||||
| Max | 35 | 23 | Bal | 0.1 | 1.5 | 1 | 0.75 | 0.015 | 0.6 | 0.6 | |
| Incoloy 800H | Min | 30 | 19 | 0.05 | 0.15 | 0.15 | |||||
| Max | 35 | 23 | Bal | 0.1 | 1.5 | 1 | 0.75 | 0.015 | 0.6 | 0.6 | |
| Incoloy 800HT | Min | 30 | 19 | 0.06 | 0.15 | 0.15 | |||||
| Max | 35 | 23 | Bal | 0.1 | 1.5 | 1 | 0.75 | 0.015 | 0.6 | 0.6 | |
| Al+Ti 0.85~1.20 | |||||||||||
